ACCT 420: Topic modeling and anomaly detection

Dr. Richard M. Crowley

rcrowley@smu.edu.sg

https://rmc.link/

Front Matter

Learning objectives

Roadmap for the course

Theory:
- NLP
- Anomaly detection
Application:
- Understand annual report readability
- Examine the content of annual reports
- Group firms on content
- Fill in missing data
Methodology:
- ML/AI (LDA, k-means, KNN)
- Dimensionality reduction: UMAP

Group project tip #1

For reading large files, readr is your friend

library(readr)  # or library(tidyverse)
df <- read_csv("really_big_file.csv.zip")

# OR

df <- read_csv("really_big_file.csv.gz")

It can read directly from zip and gzip files!
- Like those that you can export from WRDS
- Good for saving disk space
It can write directly to zip and gzip files too!

Group project tip #2

For saving intermediary results, saveRDS() + readRDS() your friend

saveRDS(really_big_object, "big_df.rds")

# Later on...
df <- readRDS("big_df.rds")

You can neatly save processed data, finished models, and more
- This is particularly helpful if you want to work on something later or distribute data or results to teammates
- As an added bonus, RDS files are compressed, taking less space on disk than csv files

If you look at the code file for this lesson, you’ll see this used extensively

Sets of documents (corpus)

Importing sets of documents (corpus)

I will use the readtext package for this example
- Importing all 6,933 annual reports from 2021
Other options include using
- purrr and df_map()
- tm and VCorpus()
- {textreadr} and read_dir()

library(readtext)
library(quanteda)
library(quanteda.textstats)
# Needs ~6.5GB RAM
corp <- corpus(readtext("/media/Scratch/Data/10-K/2021/*.txt"))

Corpus summary

summary(corp)

                        Text Types Tokens Sentences
1   0000002178-21-000034.txt  3906  42087      1352
2   0000002969-21-000055.txt  4848  57425      1863
3   0000003499-21-000005.txt  3413  32839       989
4   0000003570-21-000039.txt  5092  70180      1725
5   0000004127-21-000058.txt  4417  40081      1106
6   0000004281-21-000049.txt  5351  71989      2119
7   0000004457-21-000040.txt  3107  22717       785
8   0000004904-21-000010.txt  7444 160570      4711
9   0000004962-21-000013.txt  5805  82050      2155
10  0000004969-21-000009.txt  3406  35469       960
11  0000004977-21-000047.txt  5782  91119      2928
12  0000005513-21-000015.txt  5953 108414      3193
13  0000006201-21-000014.txt  5870 127350      3423
14  0000006281-21-000294.txt  4794  56351      1631
15  0000006845-21-000010.txt  3726  32487      1023
16  0000006951-21-000043.txt  4182  48369      1354
17  0000006955-21-000031.txt  4028  40131      1149
18  0000007039-21-000036.txt  3291  24652       750
19  0000007084-21-000008.txt  4849  57123      1597
20  0000007332-21-000016.txt  5395  79034      2194
21  0000007789-21-000018.txt  5806  88614      2541
22  0000008063-21-000007.txt  4202  45559      1512
23  0000008670-21-000027.txt  4669  44530      1285
24  0000008858-21-000036.txt  3238  29094       851
25  0000008868-21-000004.txt  5242  77291      2204
26  0000008947-21-000052.txt  3955  40226      1235
27  0000009346-21-000024.txt  3742  42873      1202
28  0000009984-21-000063.txt  4980  62694      2009
29  0000010048-21-000026.txt  4327  57000      1550
30  0000010254-21-000045.txt  4542  47180      1332
31  0000010795-21-000091.txt  4853  54704      1572
32  0000011544-21-000013.txt  4591  59531      1864
33  0000012208-21-000012.txt  4335  43967      1329
34  0000012927-21-000011.txt  5111  69379      2205
35  0000013239-21-000005.txt  6194  97014      2970
36  0000014272-21-000066.txt  6202  75439      2369
37  0000014693-21-000091.txt  4556  44208      1449
38  0000014707-21-000010.txt  4575  52736      1623
39  0000014846-21-000008.txt  3763  38589      1053
40  0000014930-21-000029.txt  4125  33569       997
41  0000015615-21-000006.txt  5473  79158      2292
42  0000016099-21-000047.txt  3822  45783      1411
43  0000016732-21-000103.txt  4121  47046      1473
44  0000016875-21-000008.txt  5664  67426      2220
45  0000016918-21-000060.txt  4496  56444      1581
46  0000017313-21-000075.txt  4677  80835      2203
47  0000017843-21-000030.txt  4123  50058      1569
48  0000018230-21-000063.txt  5125  63814      2071
49  0000018255-21-000004.txt  4368  36198       999
50  0000018349-21-000014.txt  5768  79631      2186
51  0000018926-21-000017.txt  5534  70434      1999
52  0000019584-21-000003.txt  2846  22490       746
53  0000019612-21-000031.txt  5655  83426      2444
54  0000019617-21-000236.txt  7701 173810      4731
55  0000020212-21-000019.txt  5249  64176      1783
56  0000020286-21-000013.txt  5624  81960      2717
57  0000021076-21-000016.txt  3316  24576       626
58  0000021175-21-000022.txt  4371  61659      1830
59  0000021344-21-000008.txt  5876  94705      2783
60  0000021510-21-000060.txt  5978  80631      2384
61  0000021665-21-000007.txt  4443  55593      1537
62  0000022356-21-000015.txt  5285  71881      2331
63  0000022444-21-000126.txt  4349  42979      1323
64  0000023194-21-000015.txt  3970  32748      1032
65  0000023197-21-000082.txt  5748  78652      2332
66  0000024090-21-000012.txt  5025  63463      1991
67  0000024491-21-000011.txt  4592  51961      1559
68  0000024545-21-000004.txt  6056  93506      2651
69  0000025232-21-000008.txt  4250  47677      1344
70  0000026172-21-000012.txt  5008  59732      1824
71  0000026324-21-000007.txt  4309  41245      1315
72  0000027419-21-000010.txt  3545  26796       864
73  0000027904-21-000003.txt  5330  71448      2558
74  0000027996-21-000033.txt  4710  63000      1955
75  0000028412-21-000054.txt  5421  76597      2245
76  0000028823-21-000059.txt  5324  59713      1638
77  0000028917-21-000066.txt  3116  22366       725
78  0000029332-21-000015.txt  3898  35472      1242
79  0000029644-21-000029.txt  3665  31719      1026
80  0000029905-21-000010.txt  4926  55720      1652
81  0000029915-21-000003.txt  3417  29762       918
82  0000029989-21-000004.txt  2727  24447       770
83  0000030625-21-000034.txt  5328  67204      1956
84  0000030697-21-000002.txt  5041  69427      1918
85  0000031791-21-000003.txt  5814  75407      2093
86  0000032604-21-000038.txt  4490  38969      1220
87  0000033185-21-000025.txt  5369  72460      2351
88  0000033213-21-000006.txt  5471  74141      2102
89  0000034067-21-000015.txt  4795  47094      1491
90  0000034088-21-000012.txt  4820  49954      1686
91  0000034563-21-000061.txt  4048  33522       980
92  0000034782-21-000036.txt  5135  55219      1807
93  0000034903-21-000020.txt  4412  49681      1361
94  0000035214-21-000006.txt  3946  45199      1335
95  0000035527-21-000100.txt  6929 143059      3952
96  0000036047-21-000018.txt  4841  60926      1680
97  0000036966-21-000012.txt  7196 120376      3636
98  0000037472-21-000023.txt  2881  21127       640
99  0000037785-21-000024.txt  5440  64611      2072
100 0000037808-21-000011.txt  6030  84205      2519

Running readability across the corpus

# Uses ~20GB of RAM...  Break corp into chunks if RAM constrained
corp_FOG <- textstat_readability(corp, "FOG")
corp_FOG %>%
  head() %>%
  html_df()

document	FOG
0000002178-21-000034.txt	21.11264
0000002969-21-000055.txt	22.01396
0000003499-21-000005.txt	21.81568
0000003570-21-000039.txt	24.91956
0000004127-21-000058.txt	23.87785
0000004281-21-000049.txt	22.83374

Recall that Micorsoft’s annual report had a Fog index of 20.88

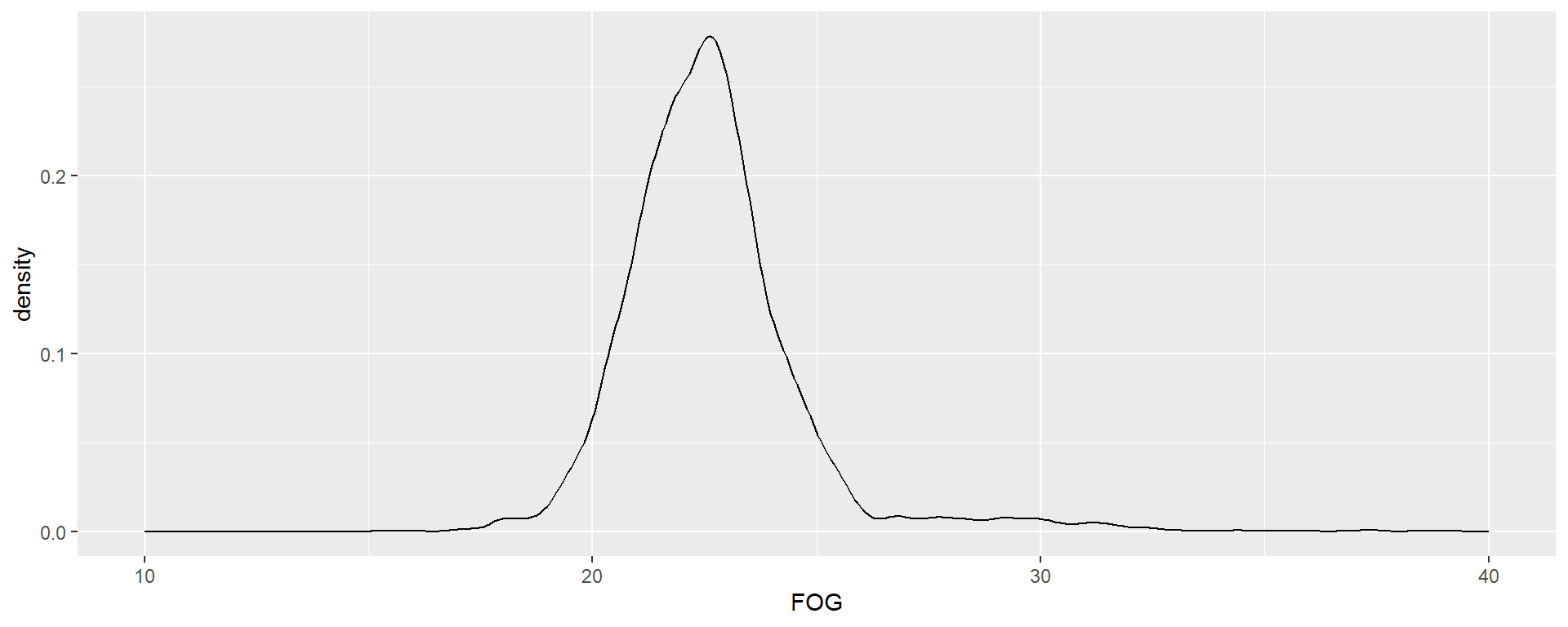

Readability across documents

summary(corp_FOG$FOG)

   Min. 1st Qu.  Median    Mean 3rd Qu.    Max.    NA's
  15.14   21.46   22.47   22.75   23.44  130.85       4

ggplot(corp_FOG, aes(x=FOG)) + geom_density() + xlim(c(10,40))

Are certain industries’ filings more readable?

Since the SEC has their own industry code (SIC), we’ll use that
SIC codes are 4 digits
- The first two digits represent the industry
- The third digit represents the business group
- The fourth digit represents the specialization
Example: Microsoft is SIC 7372
- 73: Business services
- 737: Computer programming, data processing, and other computer related services
- 7372: Prepackaged software

Are certain industries’ filings more readable?

Construct a data set of industries mapped to filings

df_SIC <- read.csv('../../Data/Session_8-Filings2021.csv') %>%
  select(accession, regsic) %>%
  mutate(accession=paste0(accession, ".txt")) %>%
  rename(document=accession) %>%
  mutate(industry = case_when(
    regsic >=0100 & regsic <= 0999 ~ "Agriculture",
    regsic >=1000 & regsic <= 1499 ~ "Mining",
    regsic >=1500 & regsic <= 1799 ~ "Construction",
    regsic >=2000 & regsic <= 3999 ~ "Manufacturing",
    regsic >=4000 & regsic <= 4999 ~ "Utilities",
    regsic >=5000 & regsic <= 5199 ~ "Wholesale Trade",
    regsic >=5200 & regsic <= 5999 ~ "Retail Trade",
    regsic >=6000 & regsic <= 6799 ~ "Finance",
    regsic >=7000 & regsic <= 8999 ~ "Services",
    regsic >=9100 & regsic <= 9999 ~ "Public Admin" )) %>%
  group_by(document) %>%
  slice(1) %>%
  ungroup()

Merge the industry data with the readability data

corp_FOG <- corp_FOG %>% left_join(df_SIC)

Are certain industries’ filings more readable?

corp_FOG %>%
  head() %>%
  html_df()

document	FOG	regsic	industry
0000002178-21-000034.txt	21.11264	5172	Wholesale Trade
0000002969-21-000055.txt	22.01396	2810	Manufacturing
0000003499-21-000005.txt	21.81568	6798	Finance
0000003570-21-000039.txt	24.91956	4924	Utilities
0000004127-21-000058.txt	23.87785	3674	Manufacturing
0000004281-21-000049.txt	22.83374	3350	Manufacturing

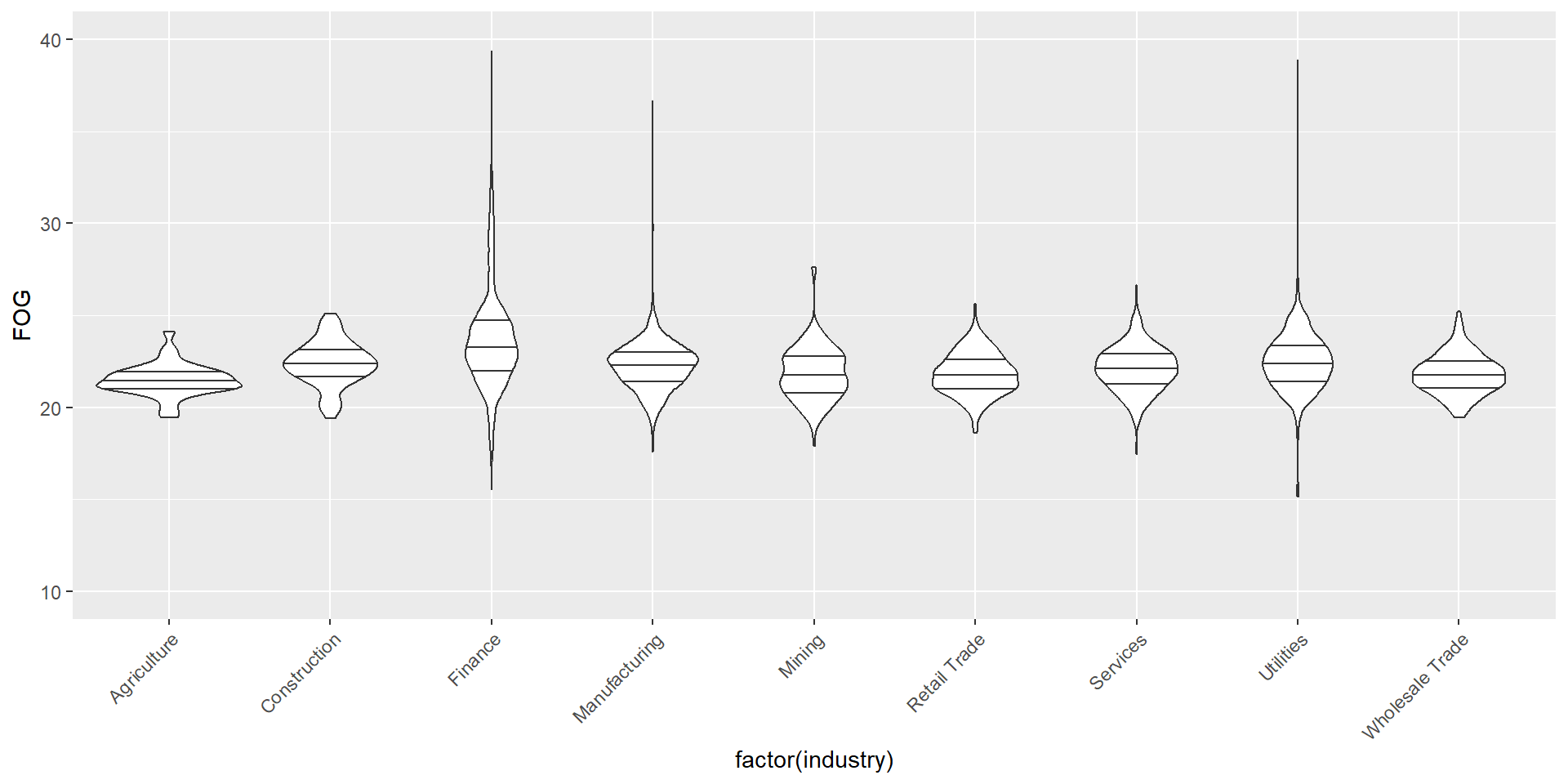

Are certain industries’ filings more readable?

ggplot(corp_FOG[!is.na(corp_FOG$industry),], aes(x=factor(industry), y=FOG)) +
  geom_violin(draw_quantiles = c(0.25, 0.5, 0.75)) +
  theme(axis.text.x = element_text(angle = 45, hjust = 1)) + ylim(c(10, 40))

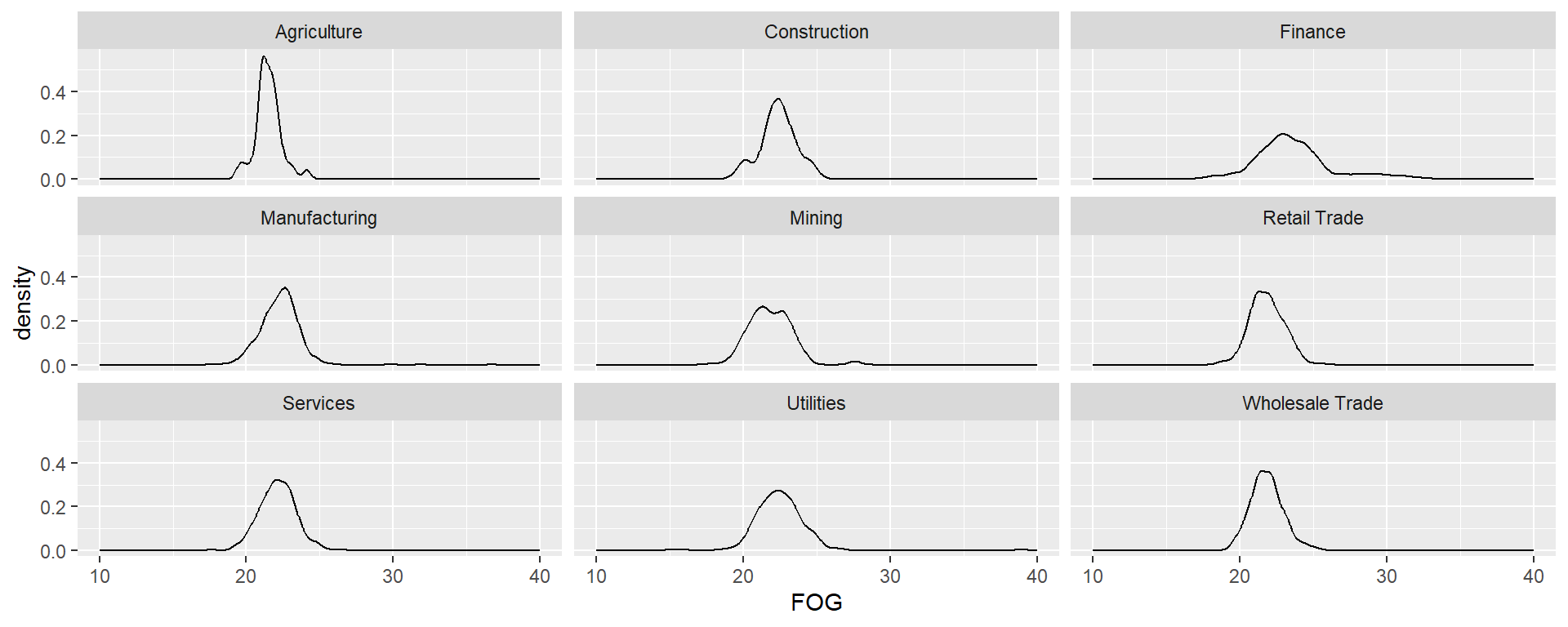

Are certain industries’ filings more readable?

ggplot(corp_FOG[!is.na(corp_FOG$industry),], aes(x=FOG)) +
  geom_density() + facet_wrap(~industry) + xlim(c(10, 40))

`quanteda` bonus: References across text (Global warming)

corp_tokens <- tokens(corp)  # This takes a couple hours to run

# kwic() is very fast to run though
kwic(corp_tokens, pattern = phrase("global warming"), window = 3) %>%
  as.tibble() %>%
  mutate(text=paste(pre,keyword,post)) %>%
  left_join(select(df_SIC, document, industry), by = c("docname" = "document")) %>%
  select(docname, text) %>%
  sample_n(100) %>%
  datatable(options = list(pageLength = 5), rownames=F)

`quanteda` bonus: Mentions by industry

`quanteda` bonus: References across text (COVID-19)

corp_tokens <- tokens(corp)  # This takes a couple hours to run

# kwic() is very fast to run though
kwic(corp_tokens, pattern = phrase(c("COVID-19", "coronavirus")), window = 3) %>%
  as.tibble() %>%
  mutate(text=paste(pre,keyword,post)) %>%
  left_join(select(df_SIC, document, industry), by = c("docname" = "document")) %>%
  select(docname, text) %>%
  sample_n(100) %>%
  datatable(options = list(pageLength = 5), rownames=F)

`quanteda` bonus: Mentions by industry

Going beyond simple text measures

What’s next

Armed with an understanding of how to process unstructured data, all of the sudden the amount of data available to us is expanding rapidly
To an extent, anything in the world can be viewed as data, which can get overwhelming pretty fast
We’ll require some better and newer tools to deal with this

Problem: What do firms discuss in annual reports?

This is a hard question to answer – our sample has 317,759,360 words in it!
- 22.1 days for the “world’s fastest reader”, per this source
- 315.2 days for a standard speed reader (700wpm)
- 882.7 days for an average reader (250wpm)

Solutions

We could read a small sample of them.
- Imprecise, risks missing out on some types of discussion
- We need a second computer process to apply our findings to the rest of the documents
Have a computer read all of them!

Recall the topic variable from session 6

Topic was a set of 31 variables indicating how much a given topic was discussed
This measure was created by making a machine read every annual report
- The computer then used a technique called LDA to process these reports’ content into topics

This is our end goal, but we’ll work our way up

Term document matrices (TDM)

Before we begin, we’ll need a matrix of word counts per document
We’ll create something called a sparse matrix for this
A sparse matrix is a matrix that only lists values that aren’t 0

Think about the structure of a matrix where rows are document names and columns are individual words. How much of this matrix will be 0s?

Making a TDM

In quanteda, use dfm()
Useful additions:
- We can pipe the output of dfm() to dfm_remove() to remove stopwords
  - You can use remove=stopwords() for a simple list
  - We can use SMART like last week: remove=stopwords(source='smart')
  - The stopwords() function is provided by the stopwords package, and actually supports over 50 languages, including Chinese, English, Hindi, and Malay
  - For other languages: remove=stopwords("zh", source="stopwords-iso")
  - With remove=c(...), You can supply a list of stop words to remove
- We can remove particularly frequent or infrequent terms with dfm_trim()
We can preprocess our tokens() output as well
- Pass it to tokens_wordstem() for stemming
  - Ex.: code, coding, and coder would all become cod
- tokens() has the options remove_punct=T and remove_numbers=T too

Making a TDM

# Simplest way
tdm <- dfm(corp_tokens)

# With stopwords
tdm <- dfm(corp_tokens) %>%
       dfm_remove(stopwords(source='smart'))

# With stopwords and stemming -> Used in next slides
# 683M elements in the output
corp_tokens2 <- tokens(corp_tokens, remove_punct=TRUE, remove_numbers=TRUE) %>%
  tokens_wordstem()
tdm <- dfm(corp_tokens2) %>%
  dfm_remove(stopwords(source='smart'))
  dfm_trim(min_termfreq=10, termfreq_type = "count")

# adding industry to the tdm
docs <- docnames(corp)
docs <- data.frame(document=docs)
docs <- docs %>% left_join(df_SIC)
docvars(tdm, field="industry") <- docs$industry

What words matter by industry?

topfeatures(tdm, n=5, groups="industry")

$Agriculture
compani       $    oper financi    year
   9223    8862    6112    5829    5317

$Construction
      $    oper compani financi million
  14917   11563   11447   11268   10931

$Finance
   loan compani    busi       $ financi
 466138  450468  424405  423439  360063

$Manufacturing
product compani       $  includ financi
 690259  536844  498176  411262  362766

$Mining
   oper compani       $ financi     oil
  68529   66552   66374   48157   45090

$`Retail Trade`
compani       $    oper financi  includ
  60697   60076   53995   46448   44738

$Services
compani       $    oper financi    busi
 250136  234430  190355  188140  181628

$Utilities
      $    oper compani  includ million
 109619   96571   88532   80891   79997

$`Wholesale Trade`
compani       $    oper financi product
  32805   30518   23833   23060   21674

This isn’t very informative

TF-IDF

Words counts are not very informative
Knowing the words that show up frequently in one group but not in the others would be much more useful
This is called TF-IDF
- Term Frequency-Inverse Document Frequency
Think of it roughly as:

\[ \frac{\text{How many times a word is in the document}}{\text{How many documents the word is in}} \]

We can easily calculate TF-IDF using dfm_tfidf() from quanteda
- The options we’ll specify are used to match a more standard output

The actual TF-IDF equation we’ll use

\[ \frac{f_{w,d}}{f_d} \cdot -\log_2\left(\frac{n_w}{N}\right) \]

$w$ represents 1 word
$d$ represents 1 document
$f_{w,d}$ is the number of times $w$ appears in $d$
$f_{d}$ is the number of times any word appears in $d$
$n_w$ is the number of documents with $w$ at least once
$N$ is the number of documents

What words matter by industry?

tfidf_mat <- dfm_tfidf(tdm, base=2, scheme_tf="prop")
topfeatures(tfidf_mat, n=5, groups=industry)

$Agriculture
  cannabi       prc   avocado       yew      uspb
0.2668476 0.2599917 0.2108610 0.1990909 0.1921867

$Construction
 homebuild 2020-12-31 2019-12-31       home  ck1723866
 0.4848714  0.2985789  0.2360784  0.2351432  0.2049281

$Finance
   mortgag      fargo         ab 2020-12-31 2019-12-31
 22.799752  14.987289  13.155708  11.641575   7.004365

$Manufacturing
    clinic        fda      trial 2020-12-31    patient
 12.176848   8.397263   8.002860   6.812589   6.555764

$Mining
     oil      gas    drill    miner     gold
3.567497 3.309704 2.865018 1.945640 1.350271

$`Retail Trade`
   restaur 2021-01-30 merchandis  franchise      store
 2.1737584  1.1272627  1.0692899  0.9448629  0.8498510

$Services
2020-12-31       game 2019-12-31     client 2020-01-01
  2.650871   2.199351   1.852566   1.701759   1.451234

$Utilities
2020-12-31 2019-12-31        gas 2020-01-01 2018-12-31
 2.8123115  2.0785280  1.5214459  1.2668153  0.8849584

$`Wholesale Trade`
2020-12-31 2019-12-31    graybar 2021-09-30      hsiao
 0.4319546  0.3064838  0.2765405  0.2624720  0.2567148

These terms are often more meaningful

Moving on to LDA

What is LDA?

Latent Dirichlet Allocation
One of the most popular methods under the field of topic modeling
LDA is a Bayesian method of assessing the content of a document
LDA assumes there are a set of topics in each document, and that this set follows a Dirichlet prior for each document
- Words within topics also have a Dirichlet prior

More details from the creator

An example of LDA

How does it work?

Reads all the documents
- Calculates counts of each word within the document, tied to a specific ID used across all documents
Uses variation in words within and across documents to infer topics
- By using a Gibbs sampler to simulate the underlying distributions (MCMC method)

It’s a bit complicated mathematically, but it boils down to a system where generating a document follows a couple rules:
1. Topics in a document follow a multinomial/categorical distribution
2. Words in a topic follow a multinomial/categorical distribution

What type of Algorithm is LDA?

Because of the distributional assumptions (which include priors), this is Bayesian
Because of the way a Gibbs sampler approximates the distributions, this is machine learning

Implementations in R

There are at least four good implementations of LDA in R
1. stm: A bit of a tweak on the usual LDA model that plays nicely with quanteda and also has an associated {stmBrowser} package for visualization (on Github)
2. {lda}: A somewhat rigid package with difficult setup syntax, but it plays nicely with the great LDAvis package for visualizing models. Supported by quanteda.
3. {topicmodels}: An extensible topic modeling framework that plays nicely with quanteda
4. mallet: An R package to interface with the venerable MALLET Java package, capable of more advanced topic modeling

Implementing a topic model in STM

# quanteda's conversion for the stm package
out <- convert(tdm, to = 'stm')
# quanteda's conversion for the lda package
# out <- convert(tdm, to = 'lda')
# quanteda's conversion for the topicmodels package
# out <- convert(tdm, to = 'topicmodels')

Creates a list of 3 items:
- out$documents: Index number for each word with count/document
- out$vocab: Words and their index numbers
- out$meta a data frame of information from the corpus (industry)

out$documents[[1]][,386:390]

      [,1]  [,2]  [,3]  [,4]  [,5]
[1,] 23097 23101 23124 23144 23153
[2,]     2     2     1     3    89

out$vocab[c(out$documents[[1]][,386:390][1,])]

[1] "consult"  "consum"   "consumpt" "contamin" "content"

Running the model

We will use the stm() function from the stm package
- It has a lot of options that you can explore to tweak the model
- The most important is K, the number of topics we want. I’ll use 10 for simplicity, but often we need more to neatly categorize the text
  - K=100 is a popular choice when we are using the output of LDA as an input to another model
  - The model we used in Session 6 had K=31, as that captures the most restatements in-sample

library(stm)
topics <- stm(out$documents, out$vocab, K=10)

What this looks like while running

LDA model

labelTopics(topics)

Topic 1 Top Words:
     Highest Prob: 2020-12-31, 2019-12-31, 2020-01-01, 2018-12-31, 2019-01-01, 2018-01-01, decemb
     FREX: nnn:operatingleasememb, vtr:seniorshousingcommunitiesmemb, fcpt:olivegardenmemb, wpc:realestatesubjecttooperatingleasememb, exc:exelongenerationcollcmemb, ess:unencumberedapartmentcommunitiesmemb, kim:shoppingcentermemb
     Lift: adc:seniorunsecureddebtmemb, aegco, aep:amortizationofdeferredcostsmemb, aep:changesinfundedstatusmemb, aep:excessaditthatisnotsubjecttoratenormalizationrequirementsmemb, aep:ohiopowercomemb, aep:publicservicecoofoklahomamemb
     Score: 2020-12-31, 2019-12-31, 2020-01-01, 2018-12-31, 2019-01-01, 2018-01-01, nnn:operatingleasememb
Topic 2 Top Words:
     Highest Prob: servic, loan, mortgag, exhibit, report, bank, nation
     FREX: corelog, pentalpha, dbtca, dbntc, lnr, ncmslt, cwcapit
     Lift: ikb, -1122, #39, #41, 2013-c10, 2013-c11, 2013-c12
     Score: mortgag, pentalpha, dbtca, dbntc, fargo, cwcapit, corelog
Topic 3 Top Words:
     Highest Prob: servic, oper, busi, result, includ, financi, custom
     FREX: telesat, telesat’, zoominfo, apus, hcn, sciplay, airtoken
     Lift: 001-32877, 704game, 90-10, accd:commonstockwarrantsmemb, acuriti, addus, adt:firstliencreditagreementmemb
     Score: custom, revenu, cost, increas, softwar, client, game
Topic 4 Top Words:
     Highest Prob: compani, $, stock, share, financi, common, year
     FREX: ncm, hemp-deriv, auctus, yew, zander, appliancesmart, indus’s
     Lift: 280e, adnani, ankang, baod, bellridg, biofirst, biohealth
     Score: company’, cannabi, compani, mr, penni, board, stock
Topic 5 Top Words:
     Highest Prob: invest, compani, interest, $, ani, asset, valu
     FREX: uscf, pre-incent, ck11, bdcs, cik22, unl, bno
     Lift: euroccp, sdci, -0.5x, -1x, -2x, 001-32975, 001-34057
     Score: invest, reit, adviser, ck11, uscf, tenant, bdc
Topic 6 Top Words:
     Highest Prob: oper, $, million, cost, includ, financi, gas
     FREX: ferc, entergi, ngls, cleco, ameren, sce, pbf
     Lift: _________________________________________________________________________________________, —pge, #2016-n01, 000-00404, 001-05324, 001-37419, 1-06196
     Score: oil, gas, drill, ferc, cost, ngls, energi
Topic 7 Top Words:
     Highest Prob: product, develop, clinic, ani, approv, includ, requir
     FREX: preclin, nda, tumor, cgmp, post-market, biosimilar, placebo
     Lift: —licens, 0.3mg, 03-133, 1-caart, 1-gram, 11-point, 16-posit
     Score: clinic, fda, patent, preclin, patient, nda, trial
Topic 8 Top Words:
     Highest Prob: busi, combin, share, ani, initi, compani, public
     FREX: post-busi, founder, pre-initi, kaleyra, blank, consumm, worthless
     Lift: 14e-5, 3—initial, 340-10-s99-1, 5am’s, 7gc, acpgp, alberton’
     Score: warrant, combin, busi, target, initi, founder, redempt
Topic 9 Top Words:
     Highest Prob: $, million, compani, oper, product, includ, financi
     FREX: 2019-12-29, 2019-12-28, 2021-01-02, 2018-12-30, 2021-10-31, 2021-01-30, 2018-12-29
     Lift: 000-06920, 1-12936, 2015-10-27, 2017-11-26, 2018-04-28, 2018-05-27, 2018-11-25
     Score: us-gaap:pensionplansdefinedbenefitmemb, custom, cost, 2021-01-02, 2019-12-29, 2019-12-28, product
Topic 10 Top Words:
     Highest Prob: loan, $, financi, compani, bank, loss, rate
     FREX: fhlb, us-gaap:residentialportfoliosegmentmemb, tdrs, cet1, cblr, alll, four-famili
     Lift: 000-32891, 001-33572, 001-33912, 001-34042, 001-35593, 09-4, 30-59
     Score: us-gaap:commercialportfoliosegmentmemb, fhlb, us-gaap:consumerportfoliosegmentmemb, loan, us-gaap:commercialrealestateportfoliosegmentmemb, mortgag, rate

Highest prob is a straightforward measure to interpret
- The words with the highest probability of being chosen in the topic

Applying our topic model to our data

out$meta$industry <- factor(out$meta$industry)

doc_topics = data.frame(document=names(out$documents),
                        industry=out$meta$industry,
                        topic=1,
                        weight=topics$theta[,1])
for (i in 2:10) {
  temp = data.frame(document=names(out$documents),
                    industry=out$meta$industry,
                    topic=i,
                    weight=topics$theta[,i])
  doc_topics = rbind(doc_topics, temp)
}

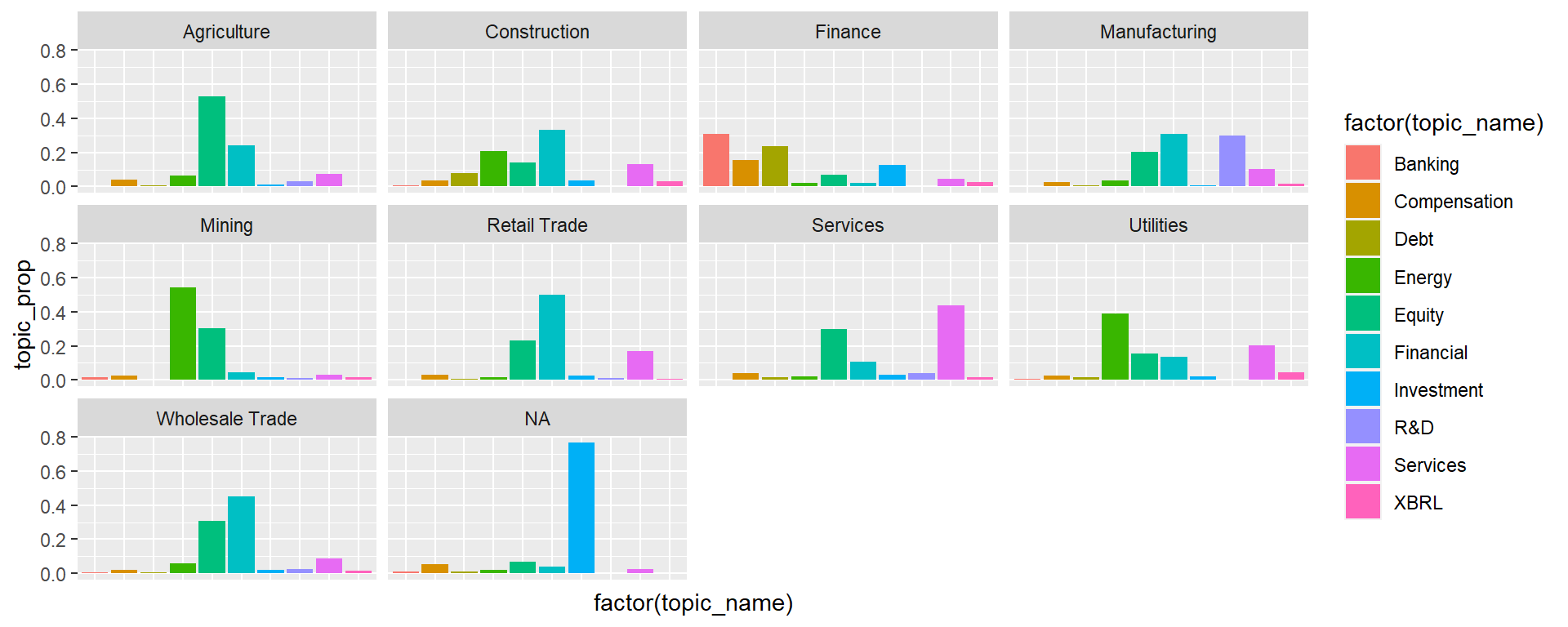

# Proportional topics (%)
doc_topics <- doc_topics %>%
  group_by(document) %>%
  mutate(topic_prop = weight / sum(weight)) %>%
  ungroup()

# Manually label topics
topic_labels = data.frame(topic = 1:10,
  topic_name = c('XBRL', 'Banking', 'Services', 'Equity',
                 'Investment', 'Energy', 'R&D',
                 'Compensation', 'Financial', 'Debt'))

doc_topics <- doc_topics %>% left_join(topic_labels)

A nice visualization of our STM model

Using LDAvis via {STM}’s toLDAvis() function
- Need LDAvis and servr installed to run
- Note: LDAvis scrambles the topic numbers (e.g., topic 1 is LDAvis’ topic 9)

# Code to generate LDAvis
toLDAvis(topics, out$documents, R=10)

Click to view

Using {stmBrowser}’s stmBrowser() function
- Install from github, not CRAN

# code to generate stmBrowser
stmBrowser(topics, data=data.frame(text=names(out$documents),
                                   industry=out$meta$industry),
           c('industry'), text='text')

Click to view

Topic content of the Microsoft 10-K

doc_topics %>% filter(document=='0001564590-21-039151.txt')

# A tibble: 10 × 6
   document                 industry topic    weight topic_prop topic_name
   <chr>                    <fct>    <dbl>     <dbl>      <dbl> <chr>
 1 0001564590-21-039151.txt Services     1 0.00488    0.00488   XBRL
 2 0001564590-21-039151.txt Services     2 0.0000168  0.0000168 Banking
 3 0001564590-21-039151.txt Services     3 0.814      0.814     Services
 4 0001564590-21-039151.txt Services     4 0.000219   0.000219  Equity
 5 0001564590-21-039151.txt Services     5 0.000164   0.000164  Investment
 6 0001564590-21-039151.txt Services     6 0.0000879  0.0000879 Energy
 7 0001564590-21-039151.txt Services     7 0.00116    0.00116   R&D
 8 0001564590-21-039151.txt Services     8 0.000330   0.000330  Compensation
 9 0001564590-21-039151.txt Services     9 0.177      0.177     Financial
10 0001564590-21-039151.txt Services    10 0.00158    0.00158   Debt

Topic content of the Microsoft 10-K versus Apple

doc_topics %>%
  filter(document=='0001564590-21-039151.txt' |
         document=='0000320193-21-000105.txt') %>%
  mutate(Company=ifelse(document=='0001564590-21-039151.txt', 'MSFT','AAPL')) %>%
  ggplot(aes(x=factor(topic_name), y=topic_prop, fill=factor(topic_name))) +
  geom_col() + facet_wrap(~Company) +
  theme(axis.text.x=element_blank(),axis.ticks.x = element_blank())

Topic content by industry

doc_topics %>%
  group_by(industry, topic) %>%
  mutate(topic_prop = mean(topic_prop)) %>%
  slice(1) %>%
  ungroup() %>%
  ggplot(aes(x=factor(topic_name), y=topic_prop, fill=factor(topic_name))) +
  geom_col() + facet_wrap(~industry) +
  theme(axis.text.x=element_blank(),axis.ticks.x = element_blank())

What we have accomplished?

We have created a measure of the content of annual reports
- This gives us some insight as to what is discussed in any annual report from 2021 by looking at only 10 numbers as opposed to having to read the whole document
  - We can apply it to other years as well, though it will be a bit less accurate if new content is discussed in those years
- We can use this measure in a variety of ways
  - Some forecasting related, such as building in firm disclosure into prediction models
  - Some forensics related, such as our model in Session 6

Consider

How might we leverage LDA (or other topic modeling methods) to improve and simplify analytics?

What other contexts or data could we use LDA on?
What other problems can we solve with LDA?

Clustering without known groups

Problem: Classifying companies based on disclosure

While industry code is one classification of firms, it has a number of drawbacks:
1. The classification system is old and perhaps misses new industries
2. It relies on self-reporting
3. Firms’ classifications rarely change, even when firms themselves change

We’ll build a different classification system, based on what they discuss in their annual reports

Clustering

One important aspect of detecting anomalies is determining groups in the data
- We call this clustering
If we find that a few elements of our data don’t match the usual groups in the data, we can consider this to be an anomaly
- Similar to the concept of outliers, but taking into account multiple variables simultaneously

The grey dot is at the mean of both the $x$ and $y$ dimensions
- it isn’t an outlier
But there are 4 clear clusters… and it doesn’t belong to any!

One clustering approach: k-means

\[ \min_{C_k} \sum_{k=1}^{K} \sum_{x_i\in C_k} \left(x_i - \mu_k\right)^2 \]

Minimizes the sum of squared distance between points within groups
Technically this is a machine learning algorithm, despite its simplicity
You need to specify the number of groups you want

Pros:
- Very fast to run
- Simple interpretation

Cons
- Simple algorithm
- Need to specify $k$, the number of clusters

Prepping data

We will need data to be in a matrix format, with…
- 1 row for each observation
- 1 column for each variable we want to cluster by
Since our data is currently in a long format, we’ll recast this with tidyr

library(tidyr)
wide_topics <- spread(doc_topics[,c(1,2,5,6)], topic_name, topic_prop)
# Note: dropping XBRL here
mat <- wide_topics[,3:11]

mat[,1:6] %>% head(n=3) %>% html_df(highlight_cols = c())

Banking	Compensation	Debt	Energy	Equity	Financial
0.0000806	0.0007570	0.0045723	0.6573965	0.0012891	0.2155210
0.0000057	0.0000372	0.0000445	0.1259373	0.0000565	0.8653703
0.0372616	0.0004645	0.0083611	0.1996815	0.0501601	0.0380236

Calculating k-means

set.seed(6845868)
clusters <- kmeans(mat, 9)

# Add clusters back into our data
wide_topics$kmean <- clusters$cluster

clusters$cluster %>% head()

[1] 4 3 5 4 3 3

The algorithm tells us group numbers for each observation
The numbers themselves are arbitrary
- The clustering (observations sharing a group number) is what matters
Note: kmeans() is built into R – no packages needed

Visualizing the clusters

cbind(as.data.frame(clusters$center), data.frame(kmean=1:9)) %>%
  gather("Topics","weights",-kmean) %>%
  ggplot(aes(x=factor(Topics), y=weights, fill=factor(Topics))) +
  geom_col() +
  facet_wrap(~kmean) +
  theme(axis.text.x=element_blank(),axis.ticks.x = element_blank())

Improving our visualization

There is a relatively new method (2018), UMAP, that is significantly better
- UMAP stands for Uniform Manifold Approximation and Projection for Dimension Reduction
- We will use it to reduce 68 dimensions down to 2
- It is useful for plotting 2 dimensional representations of high dimensional data by maintaining local distance structures
  - It also maintains distances globally, mostly
- It is computationally efficient
- It is based on solid mathematical theory
  - Reimannian manifolds and geodesic distance

Implementing UMAP

library(uwot)

# Build the UMAP model
umap_train <- umap(mat, ret_model = TRUE)
# Extract coordinates
umap_coords <- umap_train$embedding %>% as.data.frame()
colnames(umap_coords) <- c('umap1', 'umap2')
# Merge coordinates into our data frame
wide_topics <- cbind(wide_topics, umap_coords)

We will use the uwot package to implement UMAP
Our goal is to extract the locations that each document should be placed at in a 2D space
The umap() function builds the model
The umap_train$embedding object contains the needed coordinates
Then we just add these back into our data

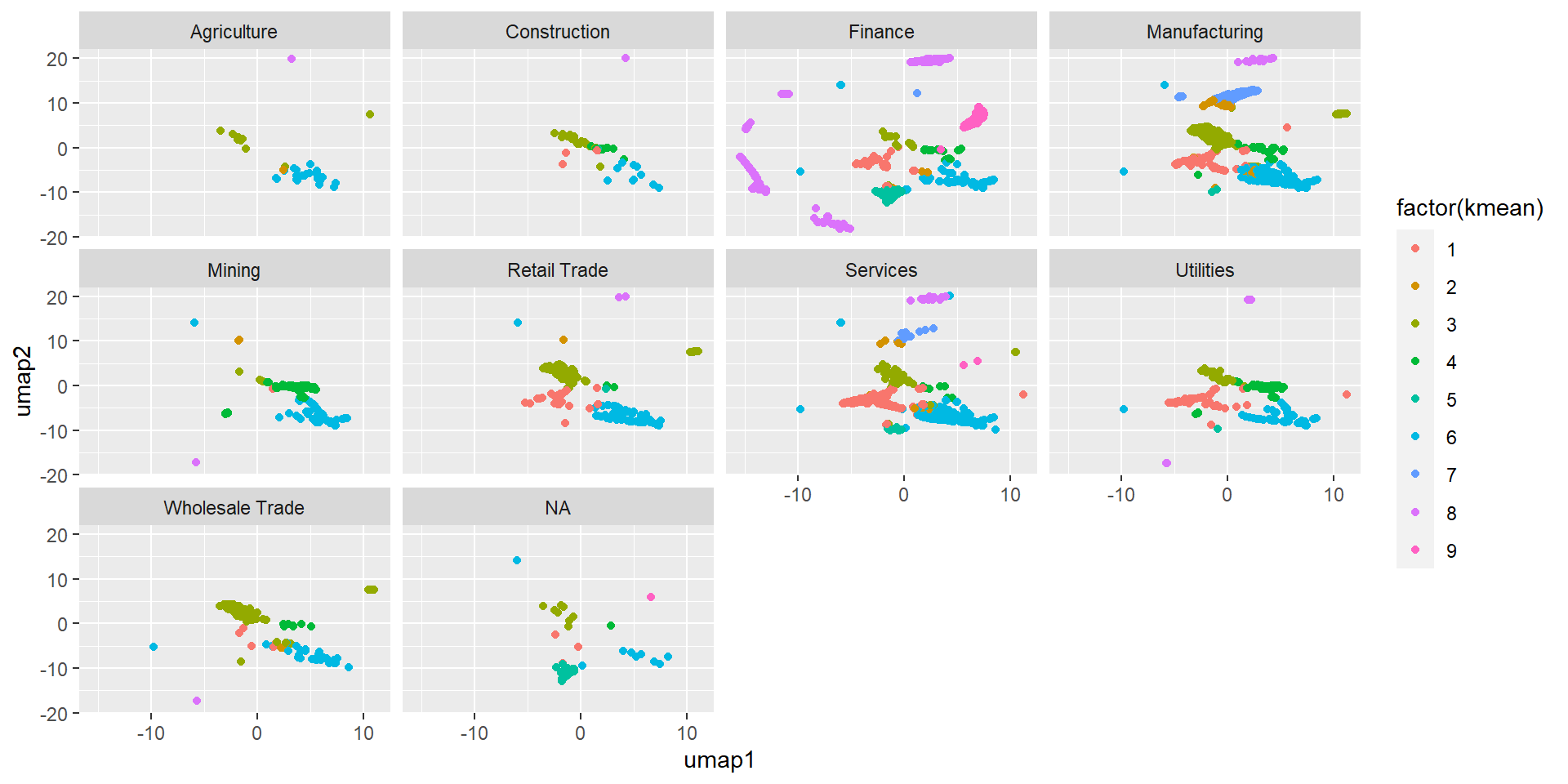

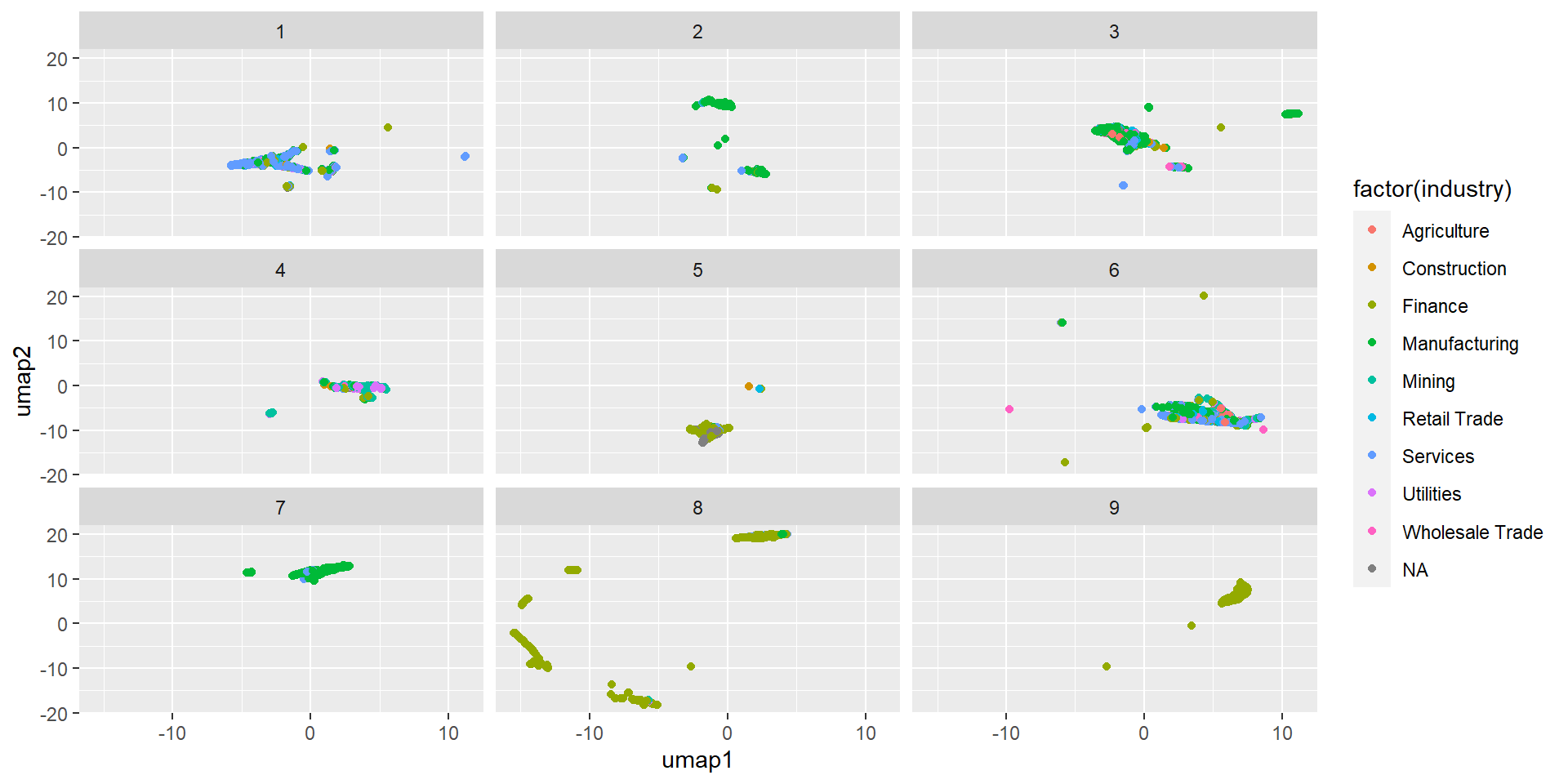

Visualizing with UMAP: k-means

Colored by SIC codes

ggplot(wide_topics,
       aes(x = umap1, y = umap2,
           color = industry)) +
  geom_point(alpha = 0.3) +
  theme_bw()

Colored by kmeans

ggplot(wide_topics,
       aes(x = umap1, y = umap2,
           color = factor(kmean))) +
  geom_point(alpha = 0.3) +
  theme_bw()

Why are these graphs different?

Possibly due to…
- Data: 10-K disclosure content doesn’t fully capture industry inclusion
- LDA: The measure is noisy – it needs more data
- SIC code: The measure doesn’t cleanly capture industry inclusion
  - Some firms are essentially misclassified
Recall, SIC covers Agriculture, Forestry and Fishing; Mining; Construction; Manufacturing; Transportation, Communications, Electric, Gas, and Sanitary Services; Wholesale Trade; Retail Trade; Finance, Insurance, and Real Estate; Services; Public Administration

Looking for anomalies

k-means minimizes the distance from a central point
We can look for the firms that are farthest from said point!

wide_topics$dist <- sqrt(rowSums(abs(mat - fitted(clusters))))  # Distance from center
wide_topics[,c(1,2,4,8,16)] %>% arrange(desc(dist)) %>% slice(1:5) %>% html_df()

document	industry	Compensation	Financial	dist
0001104659-21-044134.txt	Finance	0.9995782	2.8e-06	1.156605
0001104659-21-043939.txt	Finance	0.9995650	3.4e-06	1.156594
0001140361-21-010304.txt	Finance	0.9995592	3.7e-06	1.156589
0001193125-21-098450.txt	Services	0.9995478	3.4e-06	1.156579
0001193125-21-102380.txt	Finance	0.9995064	3.9e-06	1.156544

We are a blank check company incorporated on ________ as a Cayman Islands exempted company for the purpose of effecting a merger, share exchange, asset acquisition, share purchase, reorganization or similar business combination with one or more businesses or entities (a “Business Combination”). All 5 files…

They are used for SPACs (e.g., Grab)

Looking for anomalies (ignoring finance firms)

wide_topics[,c(1,2,4,8,16)] %>%
  filter(industry!="Finance") %>%
  arrange(desc(dist)) %>%
  mutate(id=1:n()) %>%
  select(id,everything()) %>%
  slice(1:7) %>%
  html_df()

id	document	industry	Compensation	Financial	dist
1	0001193125-21-098450.txt	Services	0.9995478	3.40e-06	1.156579
2	0001193125-21-092793.txt	Manufacturing	0.9988654	1.19e-05	1.155990
3	0001193125-21-100874.txt	Services	0.9963810	1.17e-05	1.153839
4	0001140361-21-010411.txt	Services	0.9778598	2.05e-05	1.153371
5	0001104659-21-031725.txt	Manufacturing	0.9770098	2.31e-05	1.152625
6	0001213900-21-013228.txt	Manufacturing	0.9944066	5.28e-05	1.152517
7	0001213900-21-010315.txt	Services	0.9941140	4.19e-05	1.151873

All: Yet more SPACs, just with the wrong industry in their filings…
How many SPACs are there?

wide_topics[,c(1,2,4,8,16)] %>% filter(Compensation > 0.9, dist > 1.1) %>% nrow()

[1] 307

Looking for anomalies (ignoring high compensation discussion)

wide_topics[,c(1,2,4,8,16)] %>%
  filter(industry!="Finance", Compensation < 0.5) %>%
  arrange(desc(dist)) %>%
  mutate(id=1:n()) %>%
  select(id,everything()) %>%
  slice(1,2,3,8,9,10) %>%
  html_df()

id	document	industry	Compensation	Financial	dist
1	0001731122-21-000373.txt	Construction	0.4180281	0.0405295	1.0988544
2	0001628280-21-000722.txt	Construction	0.0004643	0.2485153	1.0749207
3	0001654954-21-004244.txt	Services	0.0120396	0.2998639	1.0438606
8	0001410578-21-000612.txt	Construction	0.0092240	0.3515138	1.0067509
9	0001564590-21-009825.txt	Services	0.0003849	0.1270724	0.9992496
10	0001712923-21-000017.txt	Services	0.0101671	0.0004910	0.9990207

1: Sustainable homebuilder
2: Largest US homebuilder (4-7 are similar companies)
3: A bankrupt, regional lessor of 12 aircraft
8: Contracting services for automotive and energy firms; data center operation
9: A timeshare firm spun off from Hilton
10: A complex IPO-related entity with no actual operations

What we have accomplished

We have created a classification of firms into discrete groups based on their disclosure content of their 10-K filings
- The classification accounts for how similar each firm’s content is to other firms’ content
We have used this classification to identify 10 firms which have non-standard accounting disclosures for their SIC code classification

Text based industry classification using 10-Ks has been shown to be quite viable, such as in work by Hoberg and Phillips.

Consider

What else could we use clustering to solve?

Where in business would we like to group something, but we don’t know the groups?

Filling in missing data

Problem: Missing data

You may have noticed that some of the industry measure was NA
What if we want to assign an industry to these firms based on the content of their 10-K filings?

Using k-means

One possible approach we could use is to fill based on the category assigned by k-means
However, as we saw, k-means and SIC code don’t line up perfectly…
- So using this classification will definitely be noisy

A better approach with KNN

KNN, or K-Nearest Neighbors is a supervised approach to clustering
Since we already have industry classifications for most of our data, we can use that structure to inform our assignment of the missing industry codes
The way the model uses the information is by letting the nearest labeled points “vote” on what the point should be
- Points are defined by 10-K content in our case

Implementing KNN in R

We’ll use the caret package for this, as it will allow us to use k-fold cross validation to select a model
- The same technique we used for LASSO and xgboost

train <- wide_topics %>% filter(!is.na(industry))
label <- wide_topics %>% filter(is.na(industry))

library(caret)
trControl <- trainControl(method='cv', number=20)
tout <- train(industry ~ .,
      method = 'knn',
      tuneGrid = expand.grid(k=1:20),
      trControl = trControl,
      metric = "Accuracy",
      data = train[,c(2:11)])

Implementing KNN in R

tout

k-Nearest Neighbors

6742 samples
   9 predictor
   9 classes: 'Agriculture', 'Construction', 'Finance', 'Manufacturing', 'Mining', 'Retail Trade', 'Services', 'Utilities', 'Wholesale Trade'

No pre-processing
Resampling: Cross-Validated (20 fold)
Summary of sample sizes: 6403, 6404, 6406, 6404, 6405, 6407, ...
Resampling results across tuning parameters:

  k   Accuracy   Kappa
   1  0.7097283  0.6108027
   2  0.7049892  0.6046680
   3  0.7312486  0.6373751
   4  0.7450382  0.6538656
   5  0.7471123  0.6556158
   6  0.7560251  0.6668534
   7  0.7561713  0.6664935
   8  0.7528979  0.6618832
   9  0.7560264  0.6655262
  10  0.7555822  0.6646337
  11  0.7561713  0.6651377
  12  0.7589815  0.6687527
  13  0.7551291  0.6631862
  14  0.7583906  0.6676277
  15  0.7594323  0.6688836
  16  0.7606157  0.6705087
  17  0.7591355  0.6684971
  18  0.7576532  0.6664638
  19  0.7582510  0.6672672
  20  0.7589906  0.6682744

Accuracy was used to select the optimal model using the largest value.
The final value used for the model was k = 16.

KNN performance as we increase `k`

ggplot(tout$results, aes(x=k, y=Accuracy)) +
  geom_line() +
  geom_ribbon(aes(ymin=Accuracy - AccuracySD*1.96,
                  ymax=Accuracy + AccuracySD*1.96), alpha=0.2) +
  geom_vline(xintercept=15, color="blue") +
  xlab("k, optimal = 15")

Using KNN to fill in industry

CAPITAL SOUTHWEST CORP: “closed-end, non-diversified investment company”
- SIC missing, but clearly finance ✔
Rayonier Inc: It is a timberland REIT, but it used to be a paper manufacturer
- SIC is 6798 (finnace) for 1 entity, missing for another, but clearly finance x
AMERIPRISE CERTIFICATE COMPANY: Financial certificate firm
- SIC missing, but clearly finance ✔
Callaway Golf: Golf equipment
- SIC 3949 (in manufacturing) ✔
Quest Management, Inc.: No operations, but used to do marketing for fitness equipment
- No SIC, but it would fall under services ✔
MSC Income Fund: “Closed end management investment company”
- SIC missing, but clearly finance ✔

label$industry_pred <- predict(tout,
                              label)
label[,c("document",
         "industry_pred")] %>%
  head %>% html_df

document	industry_pred
0000017313-21-000075.txt	Finance
0000052827-21-000035.txt	Manufacturing
0000820027-21-000014.txt	Finance
0000837465-21-000003.txt	Manufacturing
0001017386-21-000166.txt	Services
0001047469-21-000783.txt	Finance

Recap

Today, we:

Processed a set of 6,933 annual reports from 2021 to examine their readability
Examined the content discussed in annual reports in 2021
Examined the natural groupings of content across firms
- This doesn’t necessarily match up well with SIC codes
- There are some firms that don’t quite fit with others in their industry (as we algorithmically identified)
Filled in missing industry data using KNN, and were correct in 5 of 6 checked entries ✔

End Matter

Wrap up

Keep working on the project – you have a lot of tools you can use already
- And you will learn 1 more next week!
Survey on the class session at this QR code:

ACCT 420: Topic modeling and anomaly detection

Front Matter

Learning objectives

Group project tip #1

Group project tip #2

Sets of documents (corpus)

Importing sets of documents (corpus)

Corpus summary

Running readability across the corpus

Readability across documents

Are certain industries’ filings more readable?

Are certain industries’ filings more readable?

Are certain industries’ filings more readable?

Are certain industries’ filings more readable?

Are certain industries’ filings more readable?

quanteda bonus: References across text (Global warming)

quanteda bonus: Mentions by industry

quanteda bonus: References across text (COVID-19)

quanteda bonus: Mentions by industry

Going beyond simple text measures

What’s next

Problem: What do firms discuss in annual reports?

Recall the topic variable from session 6

Term document matrices (TDM)

Making a TDM

Making a TDM

What words matter by industry?

TF-IDF

The actual TF-IDF equation we’ll use

What words matter by industry?

Moving on to LDA

What is LDA?

An example of LDA

How does it work?

Implementations in R

Implementing a topic model in STM

Running the model

LDA model

Applying our topic model to our data

A nice visualization of our STM model

Topic content of the Microsoft 10-K

Topic content of the Microsoft 10-K versus Apple

Topic content by industry

What we have accomplished?

Consider

Clustering without known groups

Problem: Classifying companies based on disclosure

Clustering

One clustering approach: k-means

Prepping data

Calculating k-means

Visualizing the clusters

Improving our visualization

Implementing UMAP

Visualizing with UMAP: k-means

Why are these graphs different?

How related are clusters and industries?

How related are clusters and industries?

How related are clusters and industries?

Looking for anomalies

Looking for anomalies

Looking for anomalies (ignoring finance firms)

Looking for anomalies (ignoring high compensation discussion)

What we have accomplished

Consider

Filling in missing data

Problem: Missing data

Using k-means

A better approach with KNN

Implementing KNN in R

Implementing KNN in R

KNN performance as we increase k

Using KNN to fill in industry

Recap

End Matter

Wrap up

Packages used for these slides

`quanteda` bonus: References across text (Global warming)

`quanteda` bonus: Mentions by industry

`quanteda` bonus: References across text (COVID-19)

`quanteda` bonus: Mentions by industry

KNN performance as we increase `k`
